Skylight MCR PROLIGHT

purpose:
The mcr Prolight skylights are a source of daylight for production halls, storage facilities and the last floors of multi-storey buildings.

technology:
depending on individual requirements, the Mercor company offers skylights mounted on straight or diagonal bases; the openings as well the base heights vary in size to suit individual needs
having made a prior inquiry, the customer may order bases of dimensions not listed in the technical specifications
all steel elements of skylights are coated with zinc for protection
standard bases are supplied with thermal insulation 20mm thick. The type and thickness of a thermal insulation can be adjusted to individual requirements

types of panels:
polycarbonate cavity sheets 10 to 25mm thick, of varied transparency and various overall heat-transfer coefficients
single, double or triple acrylic domes
solid polycarbonate plates

types:

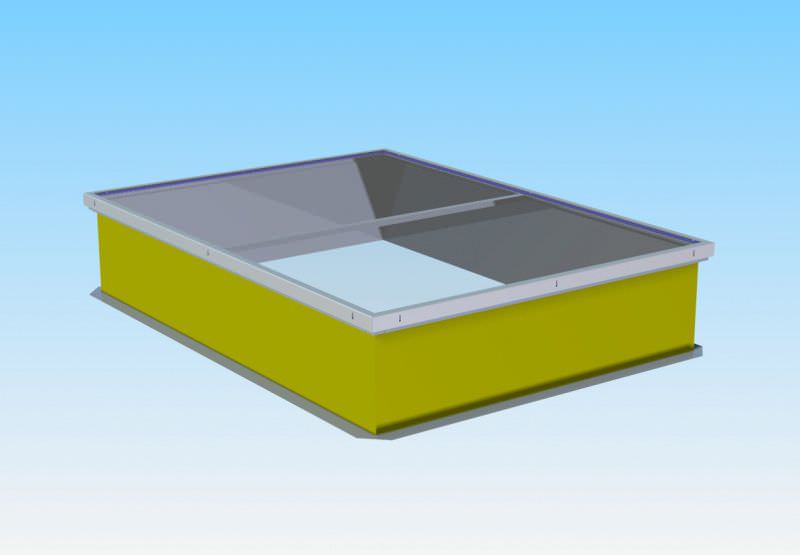

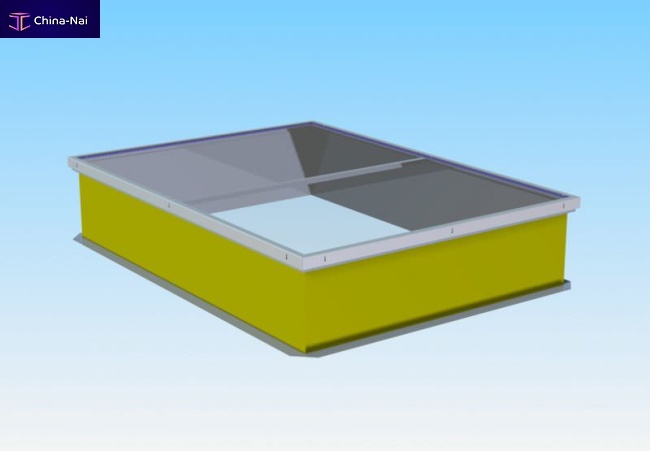

with a straight base - C, E types

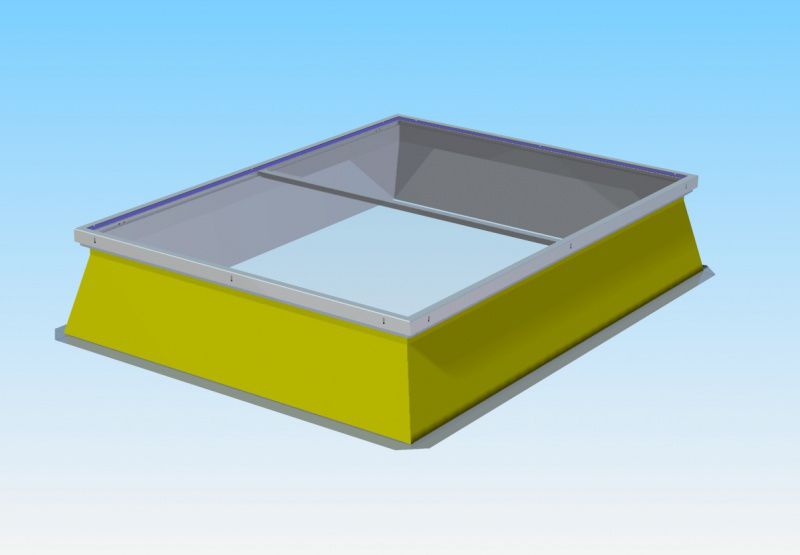

with a diagonal base - NG type

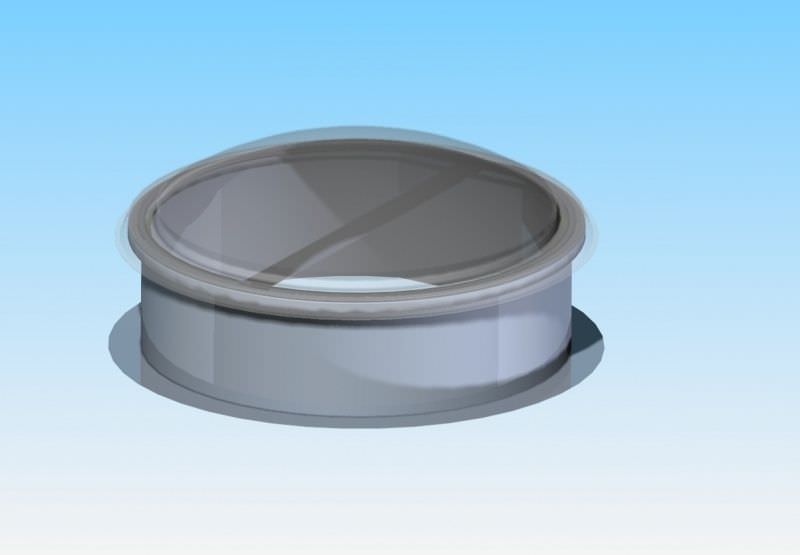

with a round base - R type

variants:
for roofs of profiled sheet – variant PR
for plinths – variant N
