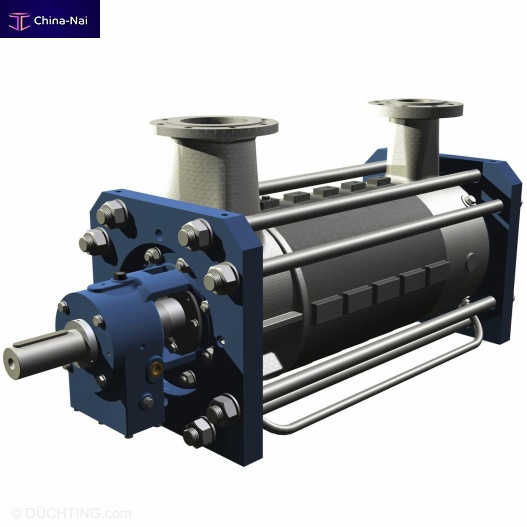

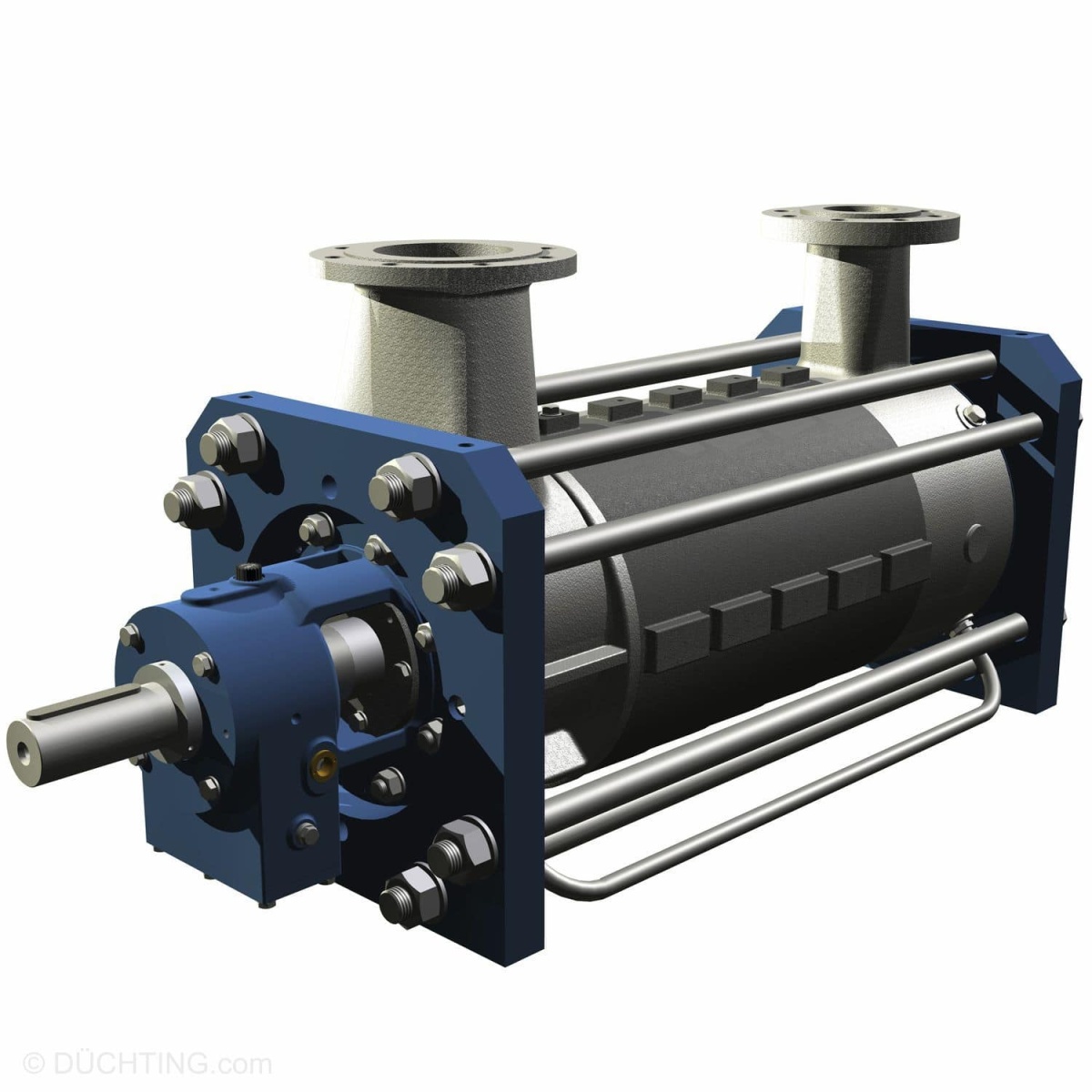

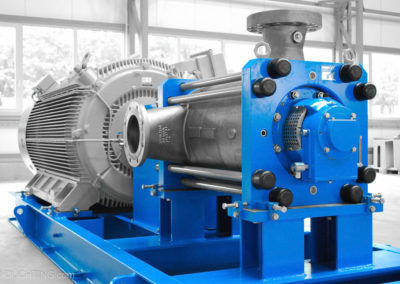

Centrifugal pump HPHwatercondensateelectric

TYPE HPH

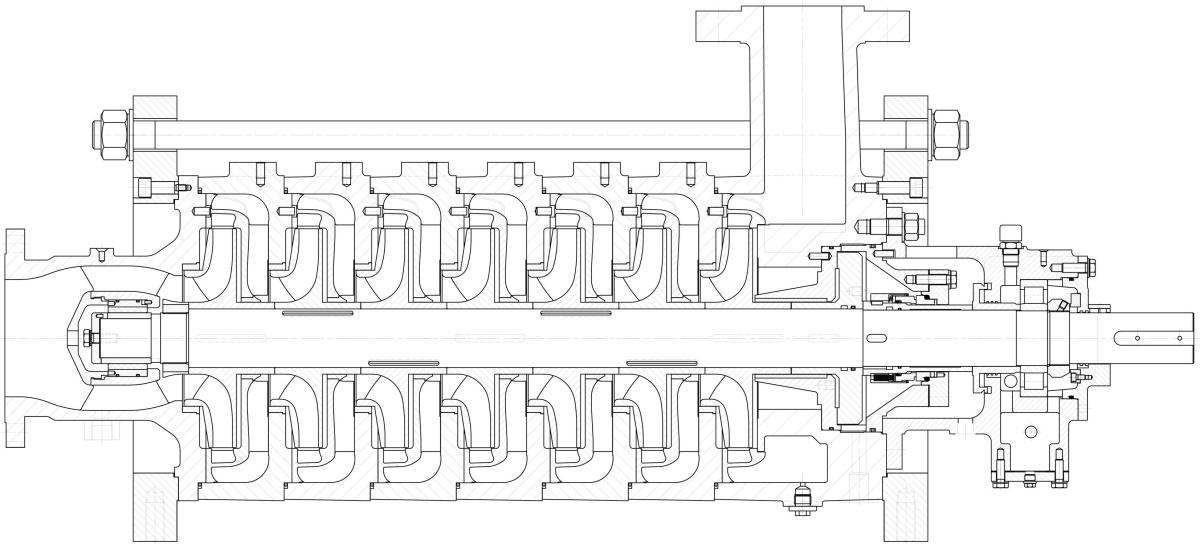

Multi stage centrifugal pumps in ring-section design.

Pump inlet: axial or radial with flanges positioned at 90° increments
Discharge flange: radial positioned at 90° increments
Replacable rings in composite material to maintain best efficiency and reliability
Shaft sealing by stuffing box or mechanical seal
Axial thrust compensation by balancing discs, balancing drum or combination of both
Easy replacement of all wearing parts
Tailormade solutions available:
Pump dimensions can be adapted to customer requirements
Impellers are fixed by fitting key (e.g. backflushing) possible
Impeller wear rings available
Pump with one or two connective shaft ends
Impellers and diffusers are cast by using ceramic moulds to get smooth surfaces for outstanding hydraulic performance

Technical Data
Pump Size: - 3 to 12
max. Pressure: - 1450 PSI
max. Flow: - 15400 gpm
Total head: - up to 3600 ft
Rotating speed: - to 3600 rpm


Fields of Application
Handling of clean or slightly polluted, chemically neutral or aggressive liquids.

Pressure boosting systems in industrial process
Water supply, and water treatment

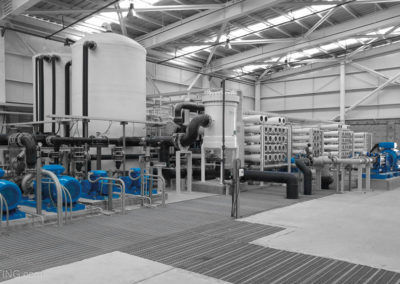

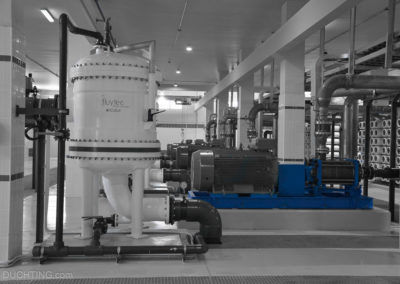

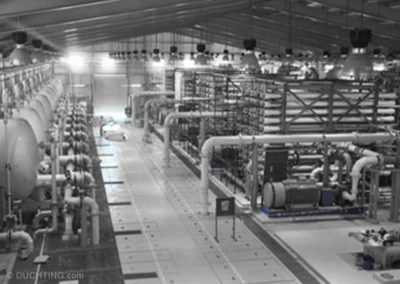

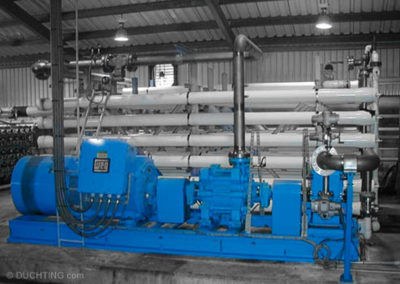

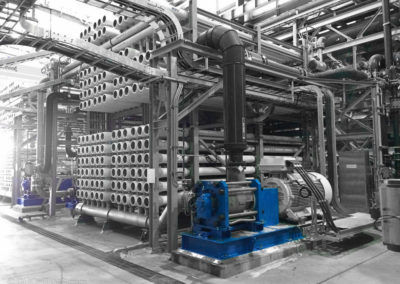

Seawater desalination
Condensate production
Boiler feed systems
Hot water applications
Petrochemical applications
Water Injection
Materials
Carefully selected depending on the application and adapted to the respective conditions.

DCHTING PUMPEN offers improved corrosion resistant materials like SUPER DUPLEX stainless steel with Pitting Resistance Equivalent numbers above 40.


Standards & Approvals
Manufactured according to ISO, DIN and ASME (API 610 / ISO 13709) possible
