Oiler OS series

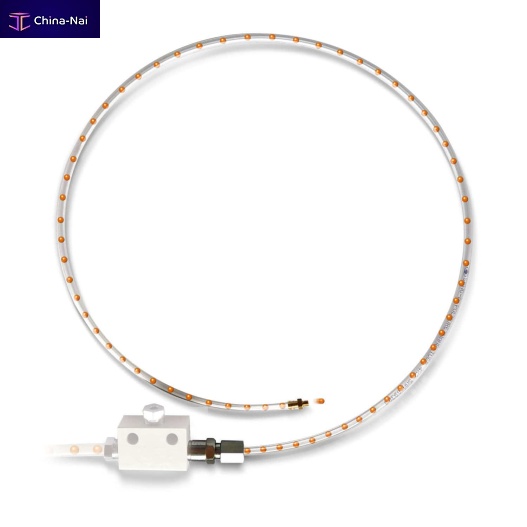

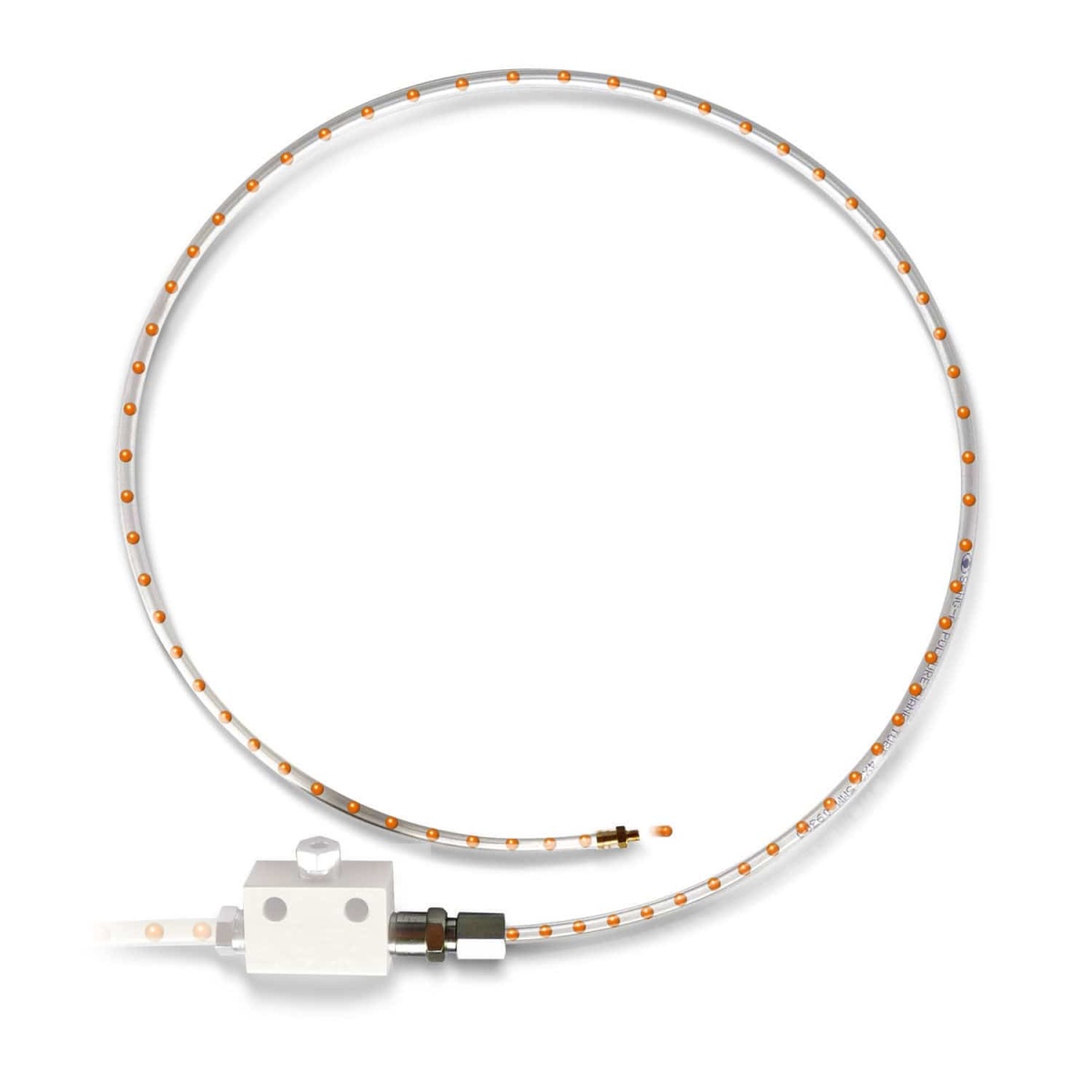

- The Loop Oiler

Tight spaces or lubricating points are difficult to access can be quite a challenge for design engineers.
To solve the problem you can install a flexible PU-hose extension (max. 2 m, outside-Ø 4 mm) on our OS-dosing valve to help you guide the oil around corners or into closed spaces (engine blocks, machine beds, etc.).
Cut the PU-hose to the desired length, use the enclosed cartridge to fill in the desired oil and attach the hose end using a M3-fitting (wrench size 4.5 mm, nominal width 1.5 mm) included in the delivery.

1) Hose (Order-No. S-PUN2,5)
2) Plug fitting (Order-No. 3045-4/2,5-M3)
3) Cutting ring 4 mm, not visible (Order-No. OS-SR4)
4) Dosing valve (Order-No. OS005-OS100)
5) Distributor (Order-No. OS-V1)
6) Cartridge and dosing needle
