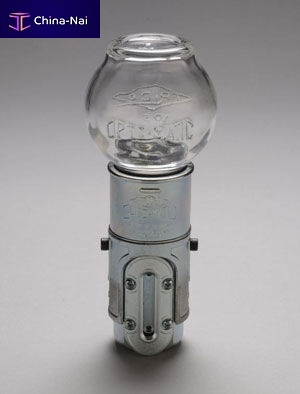

Oiler 302xx series

The Closed System Opto-Matic Oiler is designed for all types of equipment where a constant level in a oil housing must be maintained. The closed system design prevents contamination and spillage. The adjustable collar allows the oil level to be externally adjusted to the desired level. A 1/8 NPT port is provided for a vent line back to the housing to allow pressure balancing between the oiler and the housing.

Closed System Opto-Matic Constant Level Oiler with Sight Gauge

One piece glass reservoir ensures proper constant level function. Compared to competitive models, there is no possibility of air leakage that would cause overfilling of the housing.
Adjustable level setting allows use in many applications

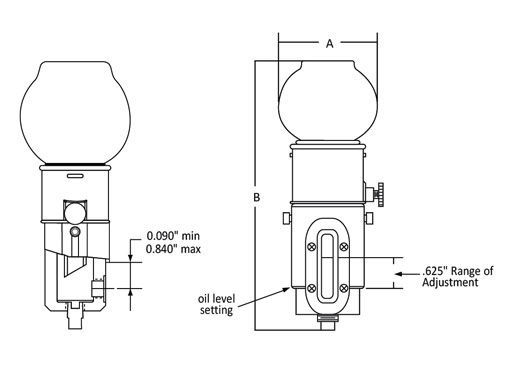

Bottom of adjusting collar indicates actual oil level setting for easy set-up and maintenance
Side and bottom connections for simplified installation
Two inch sight gauge available for easy viewing of oil level

Color-code Closed System Opto-Matic Oilers to match lubricant dispensing containers, such as Spectrum Oil Containers, to avoid cross-contamination and misapplication of lubricant.

Max. Operating Temp.250F Continuous
ReservoirOne-Piece Glass Bottle
Upper CastingZinc
Lower BodyZinc
Adjusting CollarZinc
O-RingViton®
